Hitbox_Sticks/Flatbox_Leapfrog

Table of Contents

• Images
• Front
• Back
• Lateral
• Keyboard Switches
• PCB
• 3D Prints
• Shell
• Buttons
• Weight
• Connector
• Size (cm)

Images

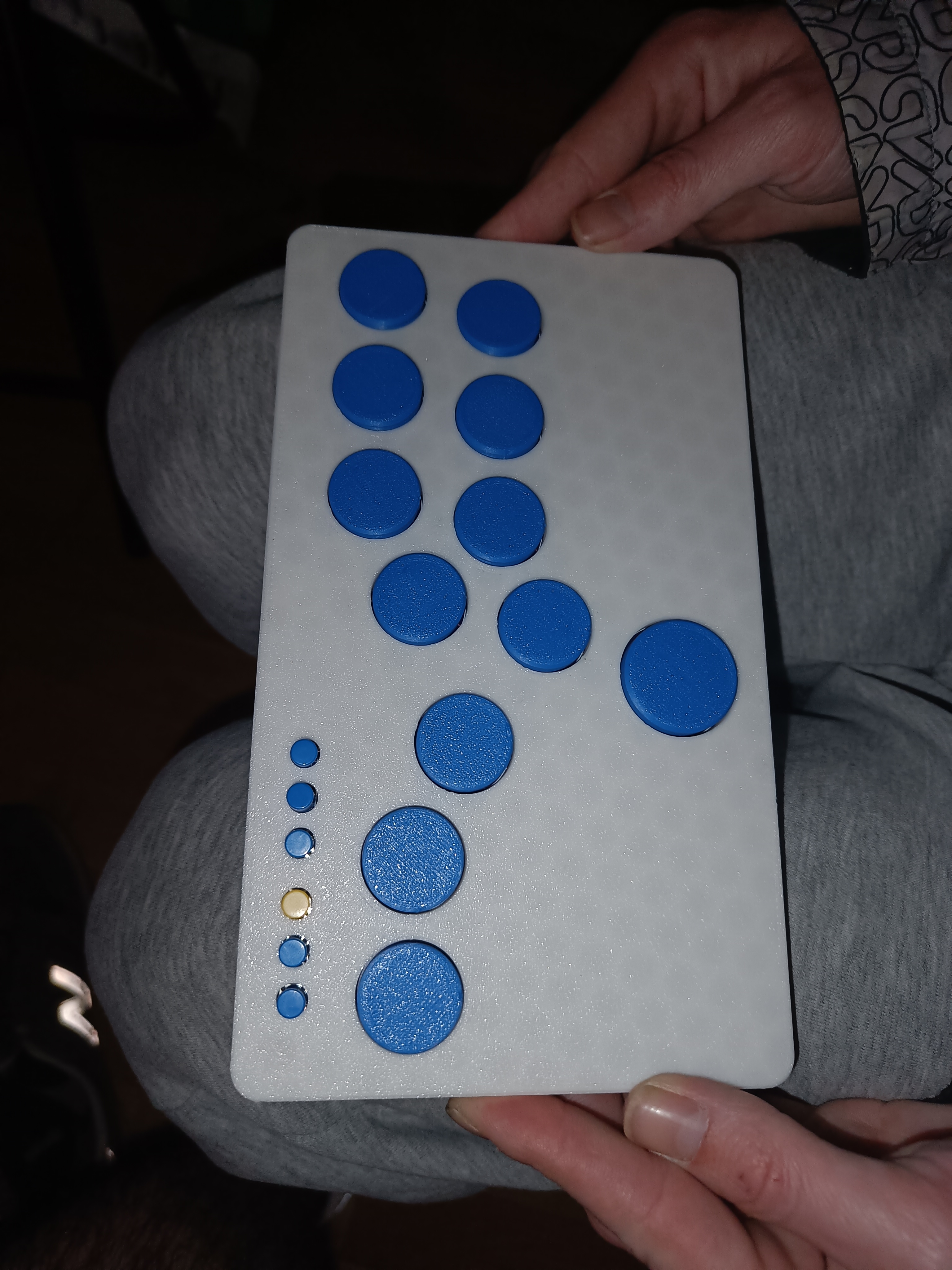

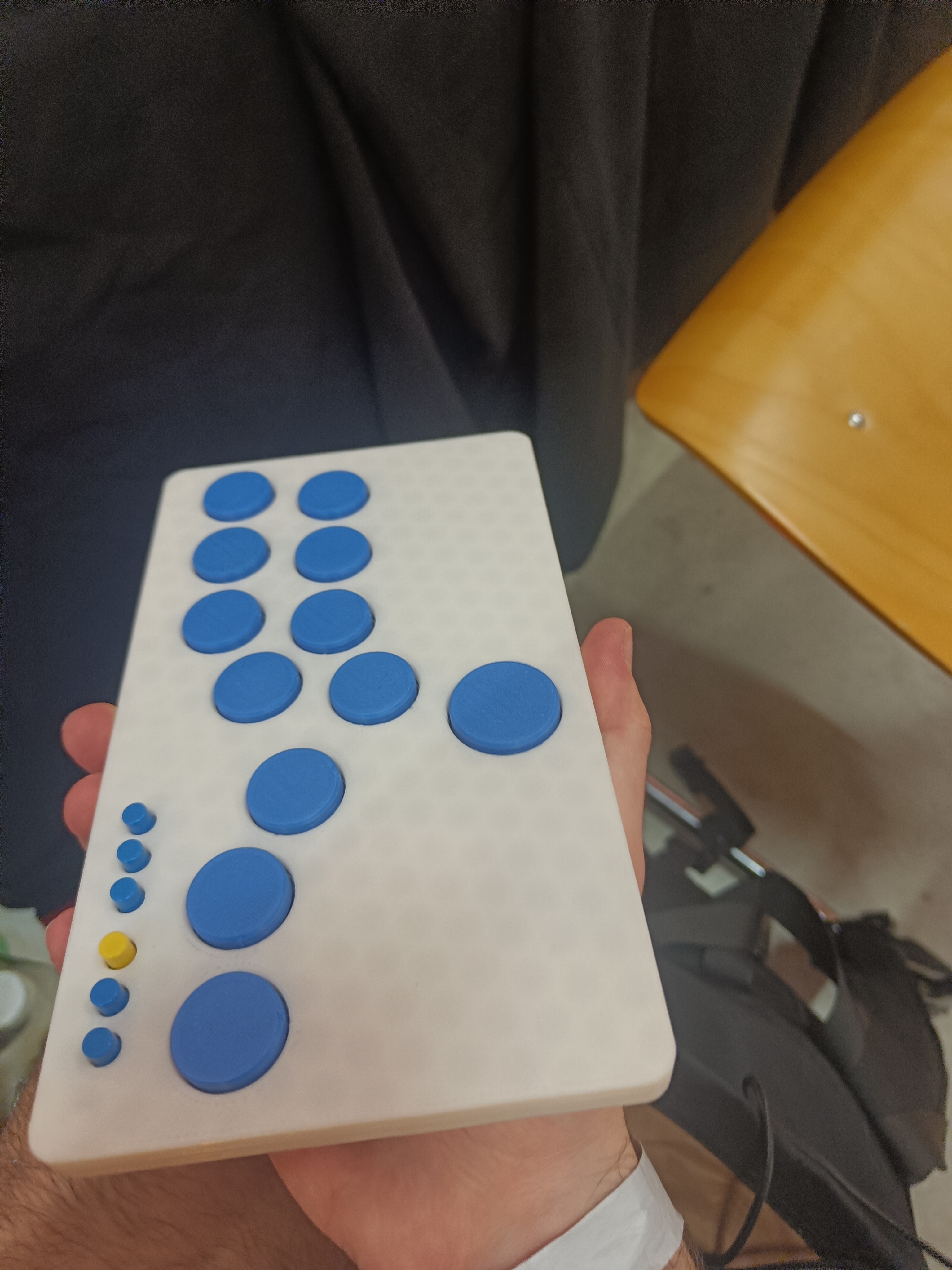

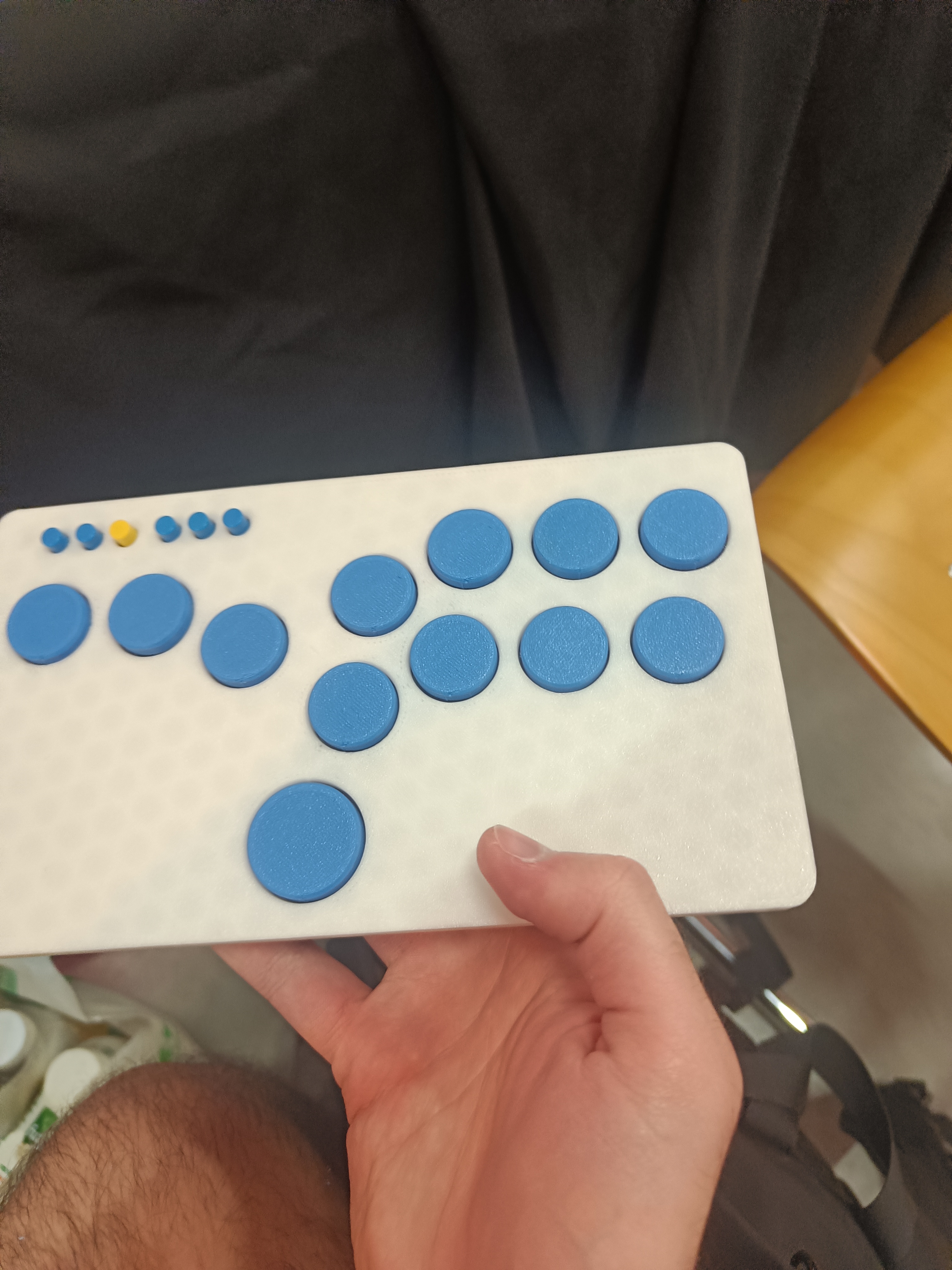

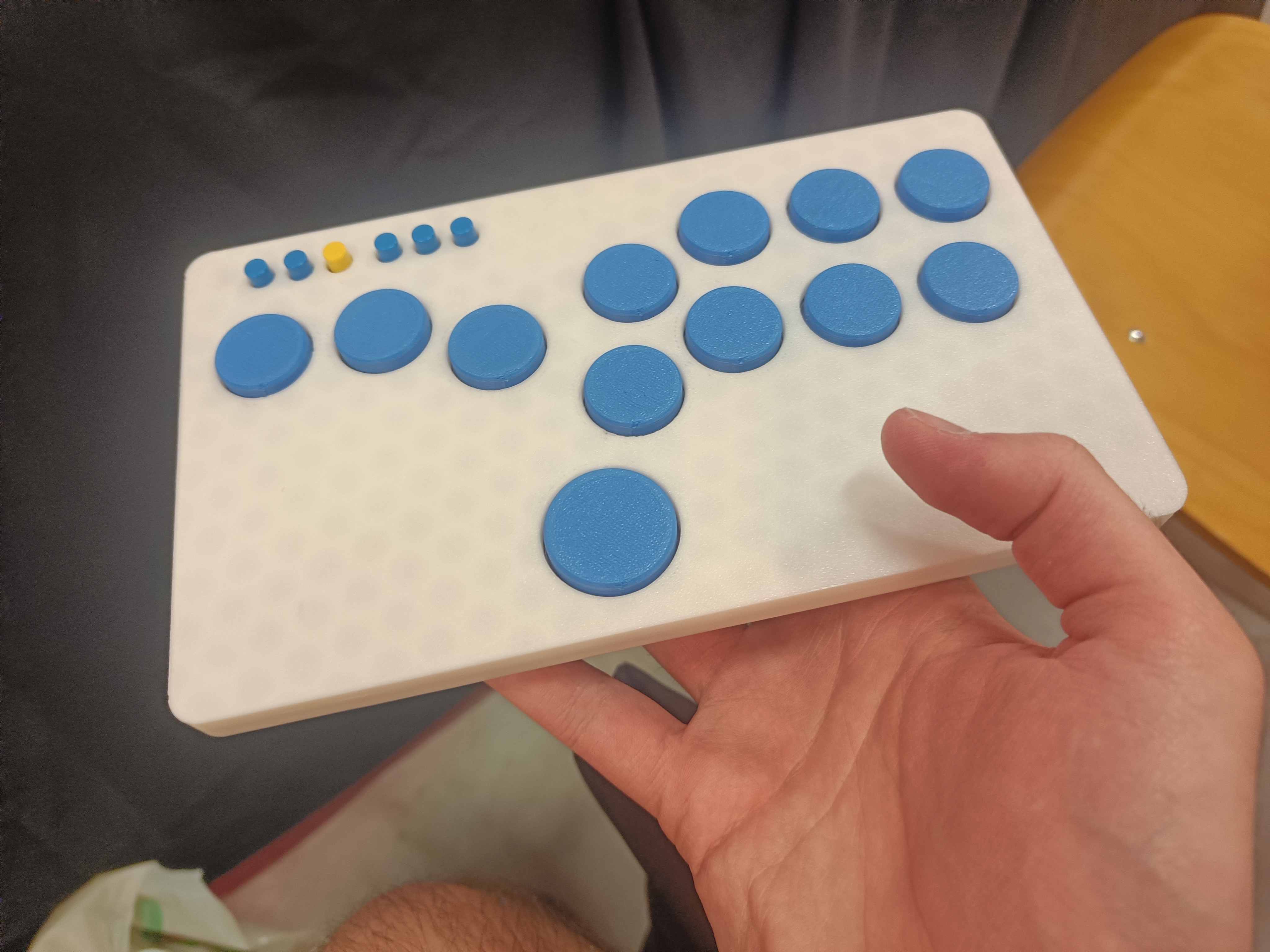

Front

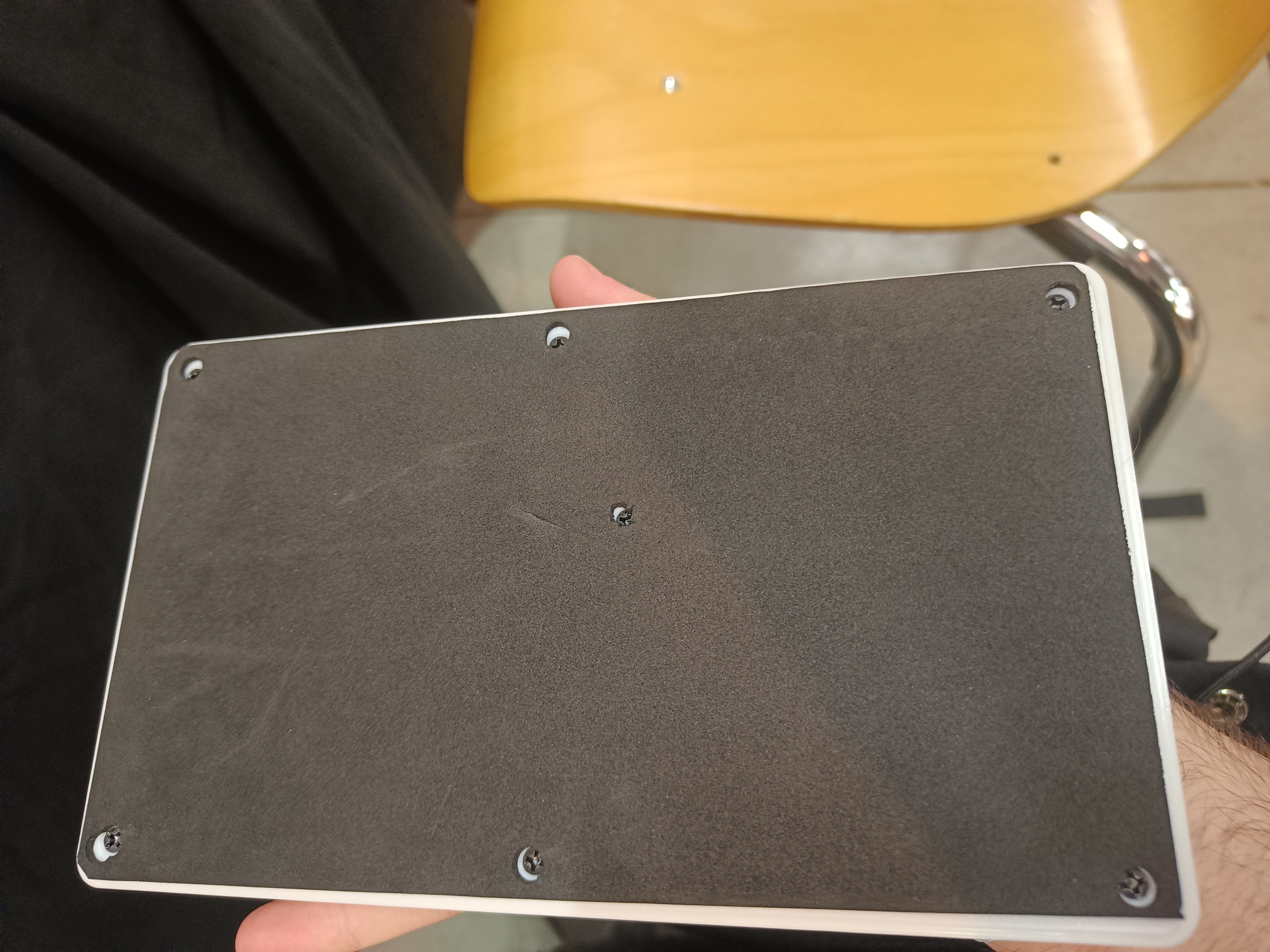

Back

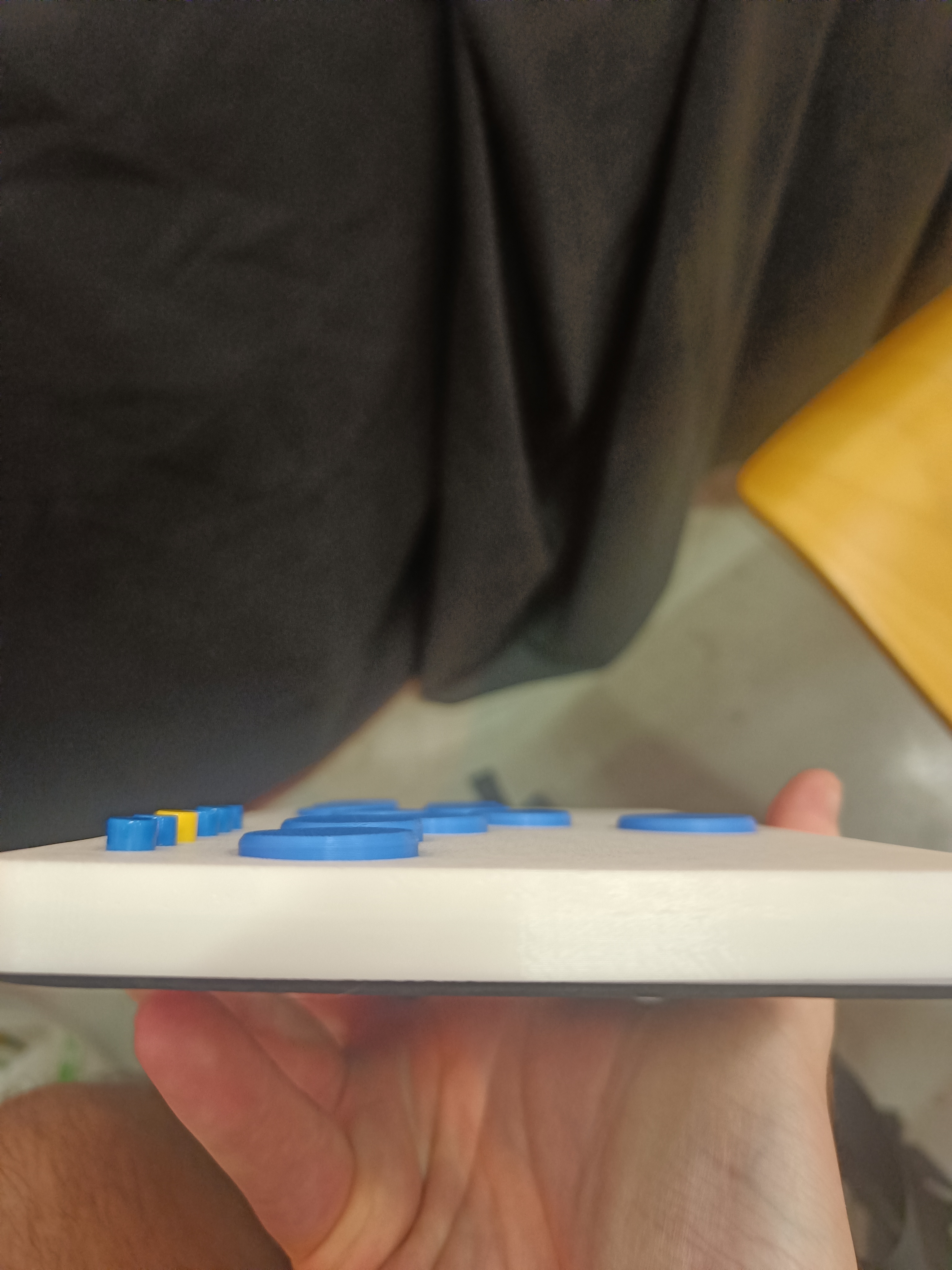

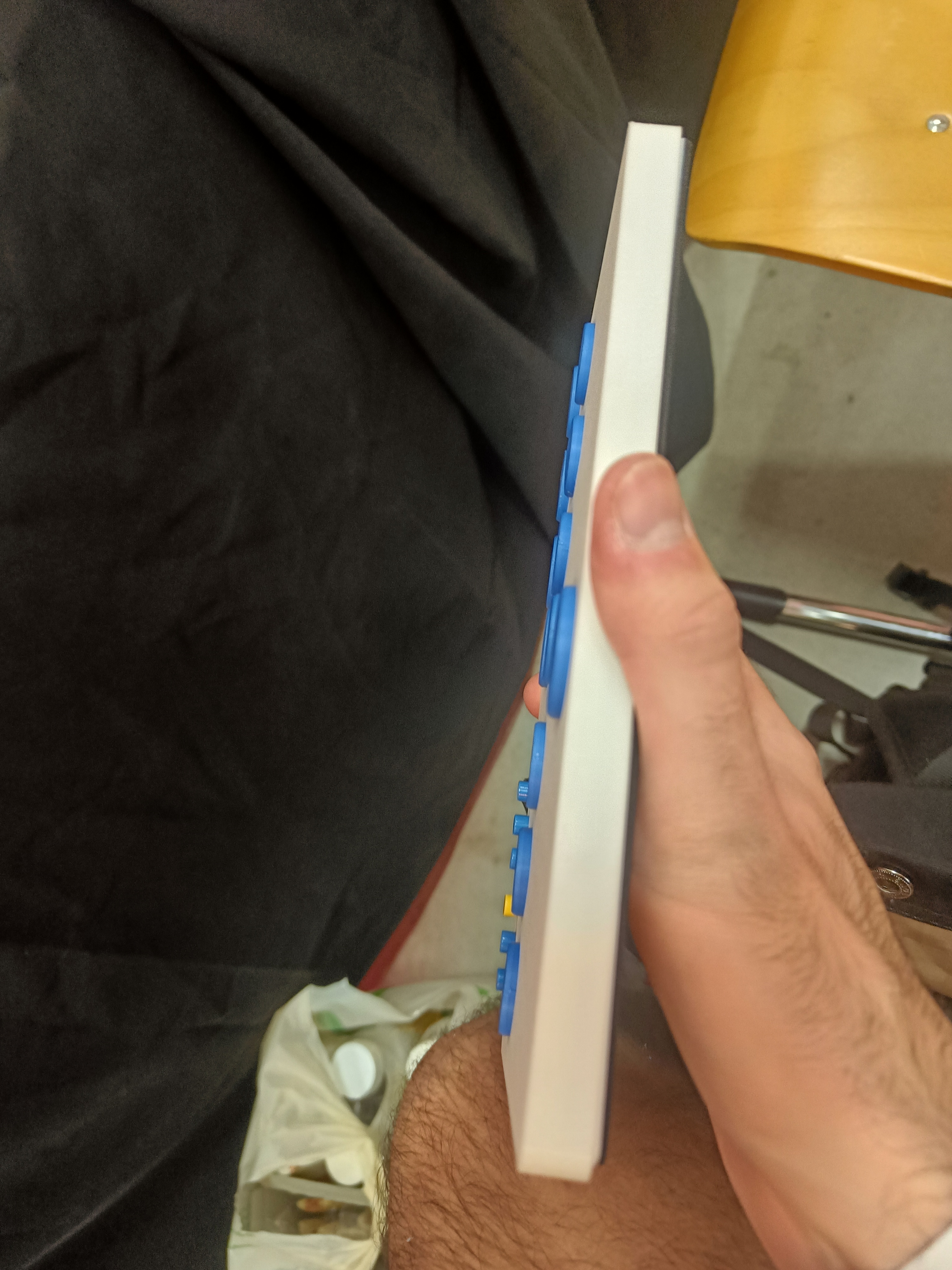

Lateral

Keyboard Switches

• 11 x Kailh Choc V1 Robin
• 1 x Kailh Choc V1 Jade for the thumb

PCB

Flatbox rev 5

https://github.com/jfedor2/flatbox

3D Prints

Shell

https://github.com/pett-j/Flatbox-Remix

Buttons

Default Flatbox rev 5 buttons, from the GP2040-CE Hardware Repo

https://github.com/OpenStickCommunity/Hardware/tree/main/Boards/GP2040-CE%20Official%20Controllers/Flatbox%20Rev%205%20RGB/Flatbox%20rev%205%20RGB%20case%20-%20Basic

Weight

Pending to fill

Connector

USB-C

Size (cm)

Pending to fill
