Table of Contents
Images

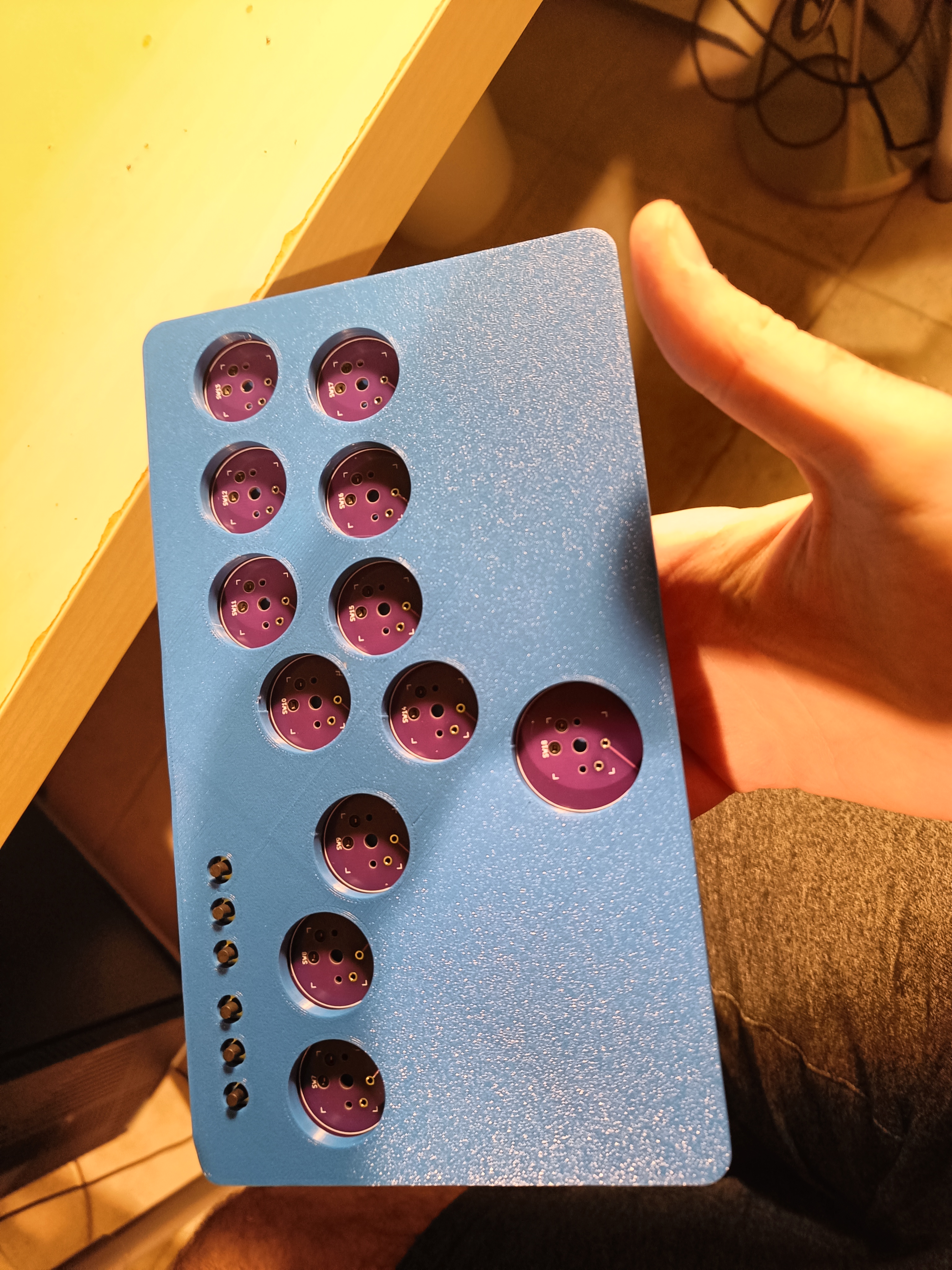

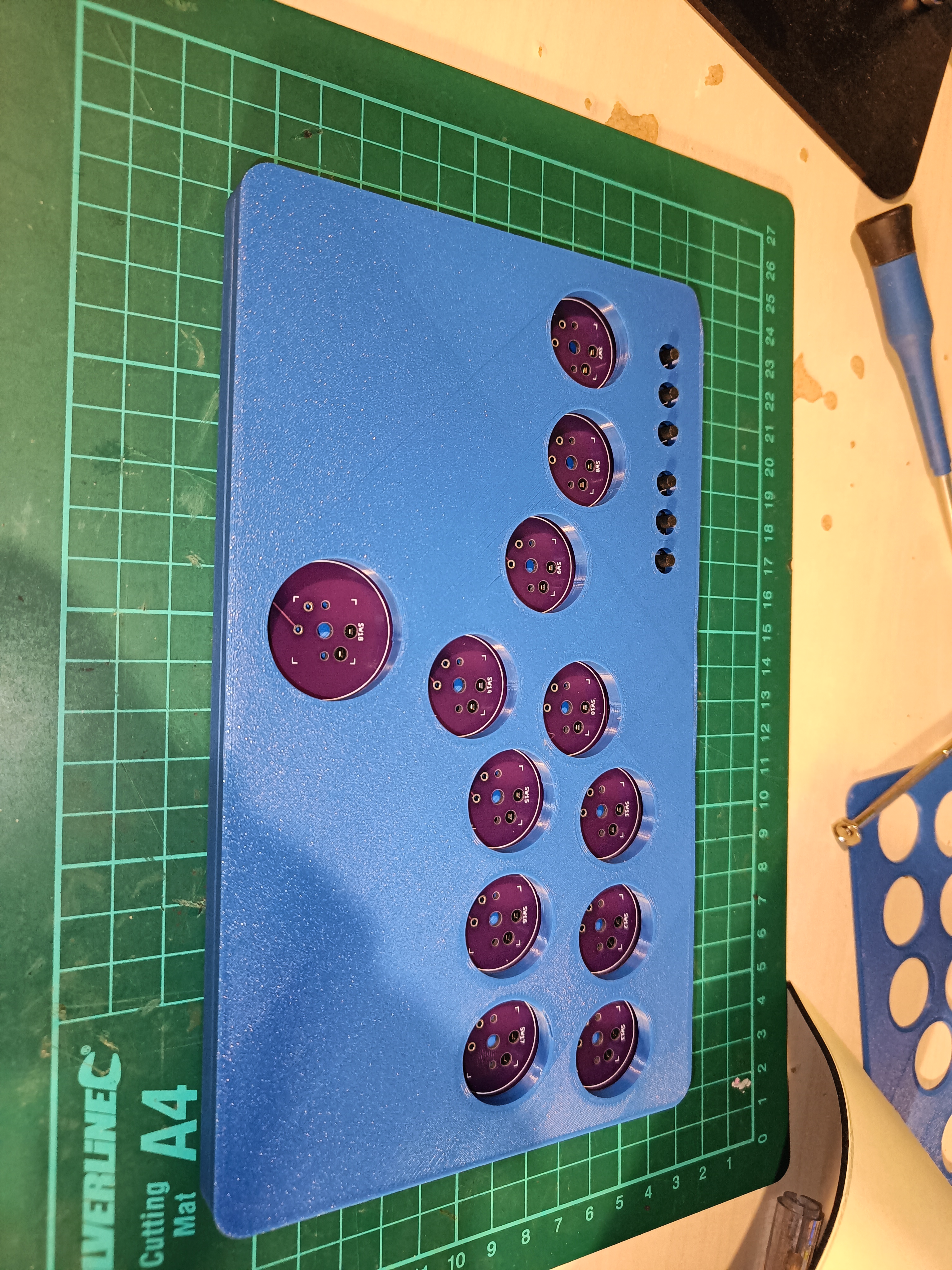

Front (prebuilt)

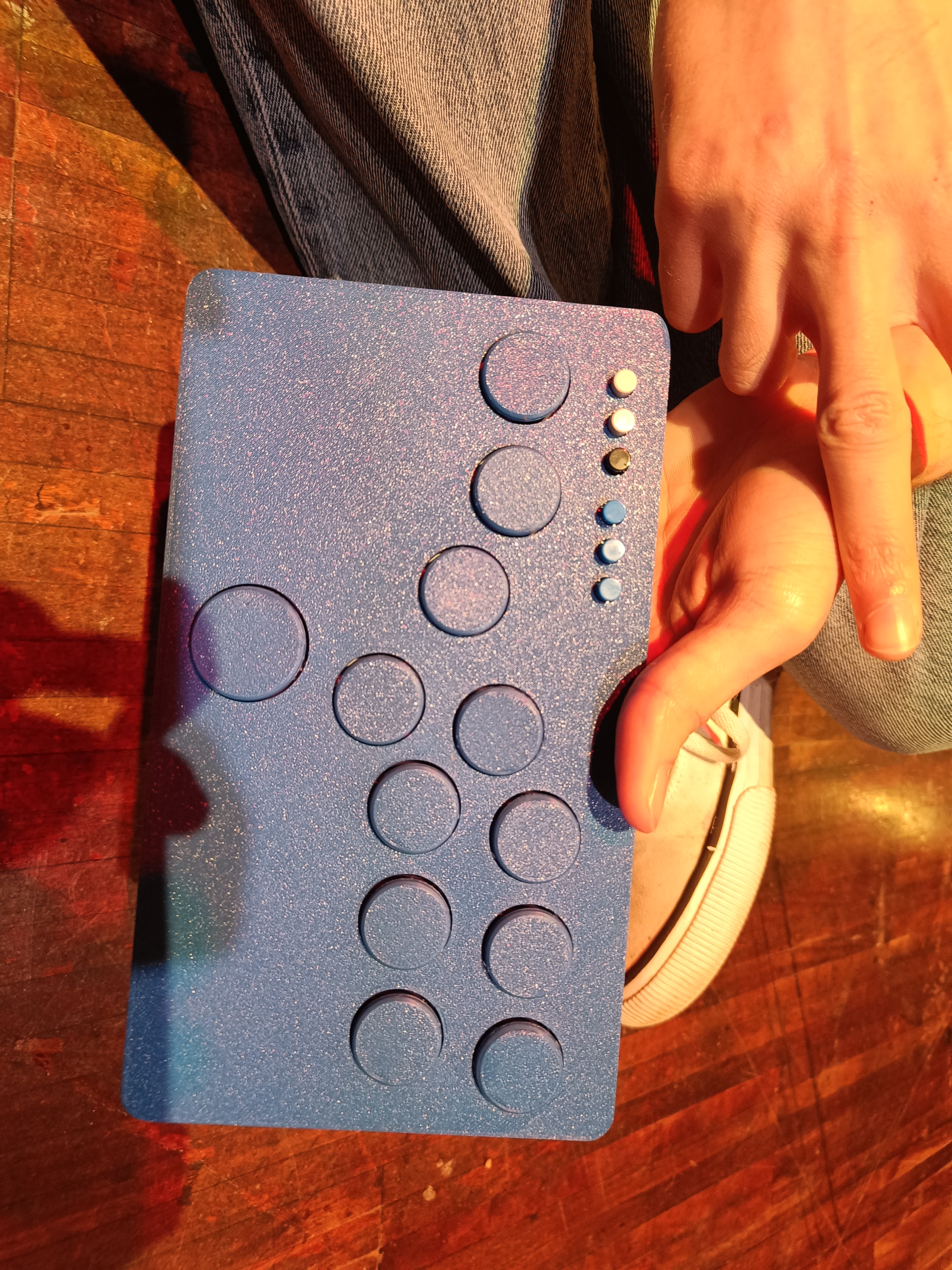

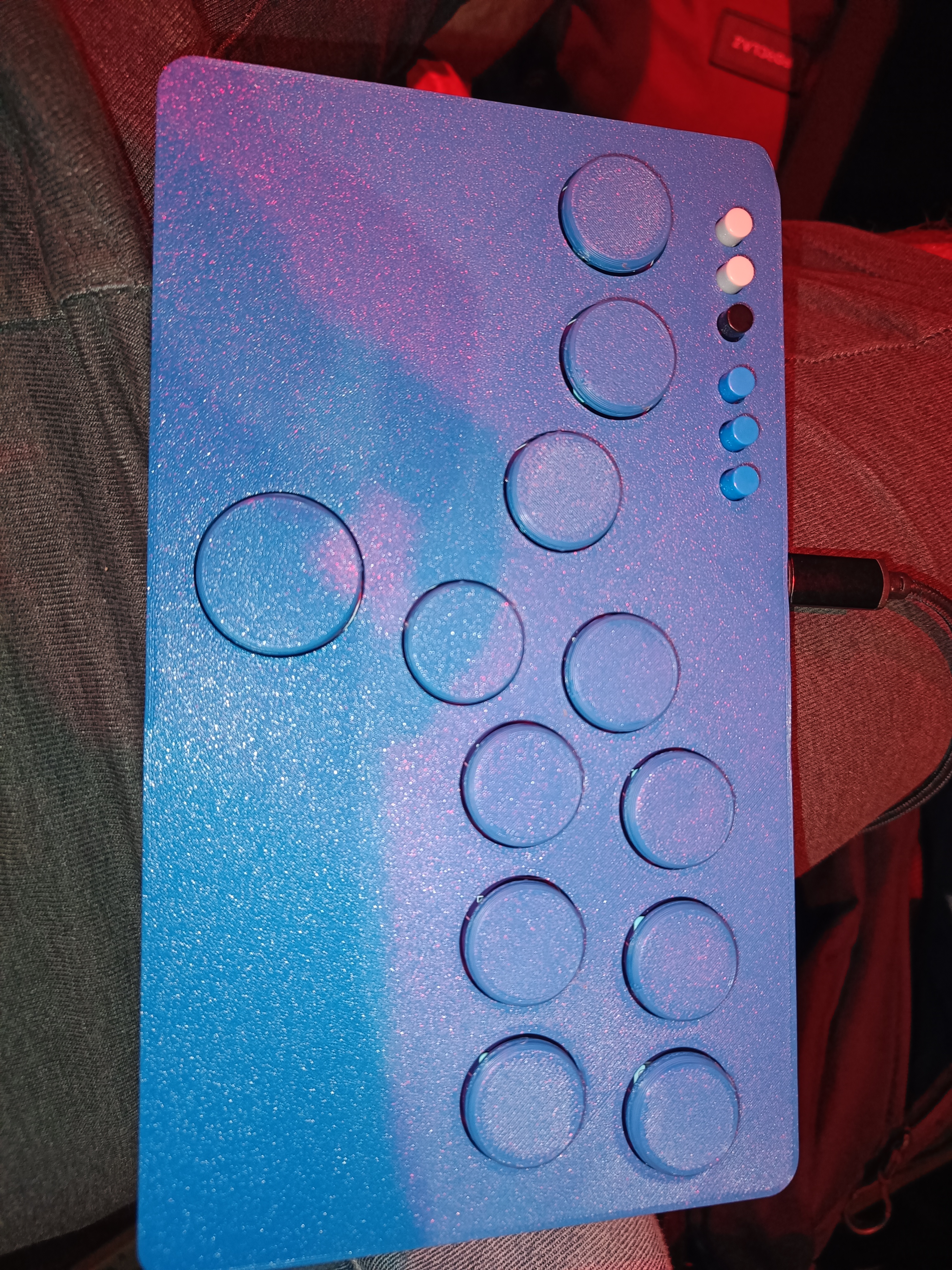

Front (built)

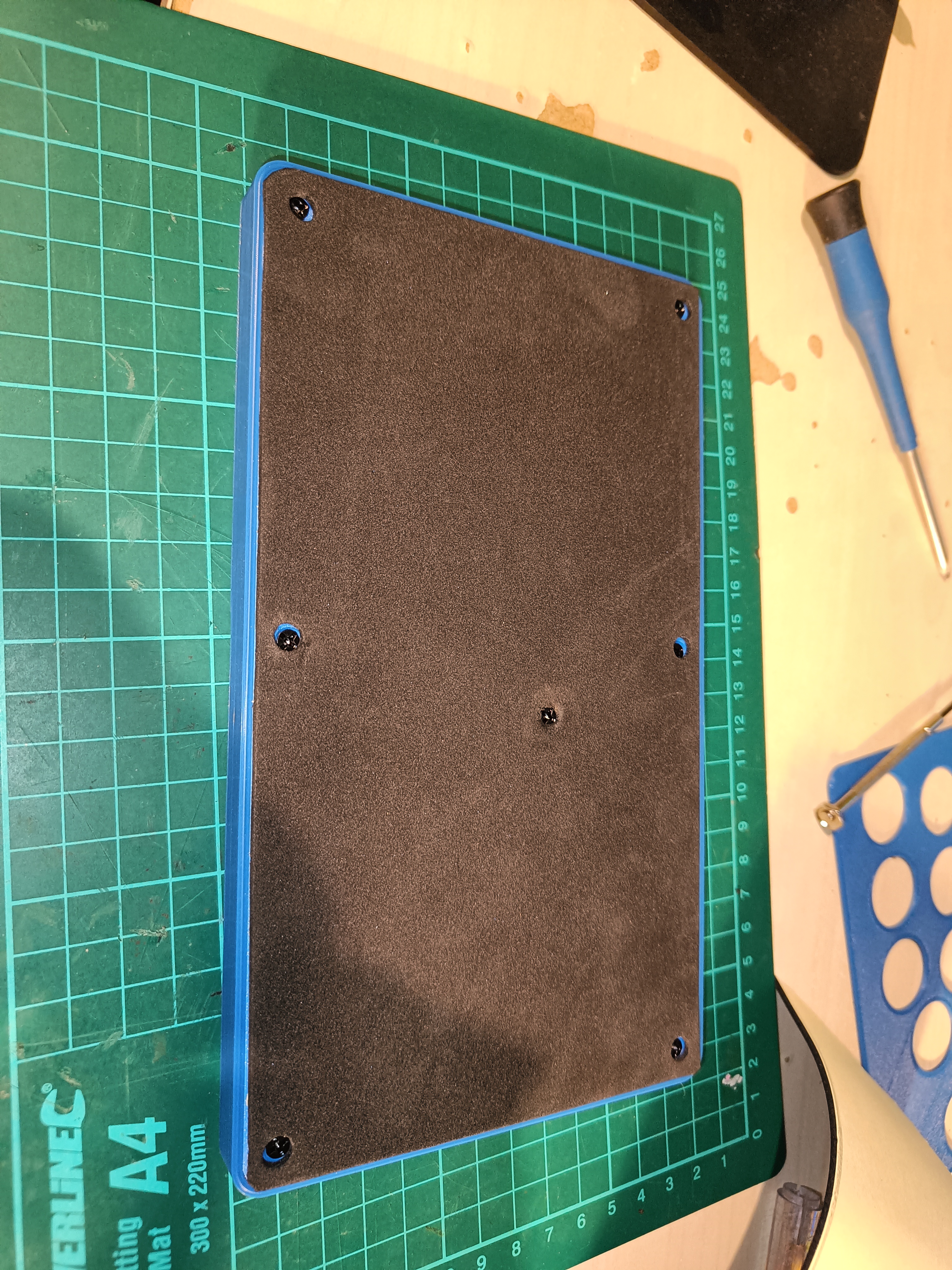

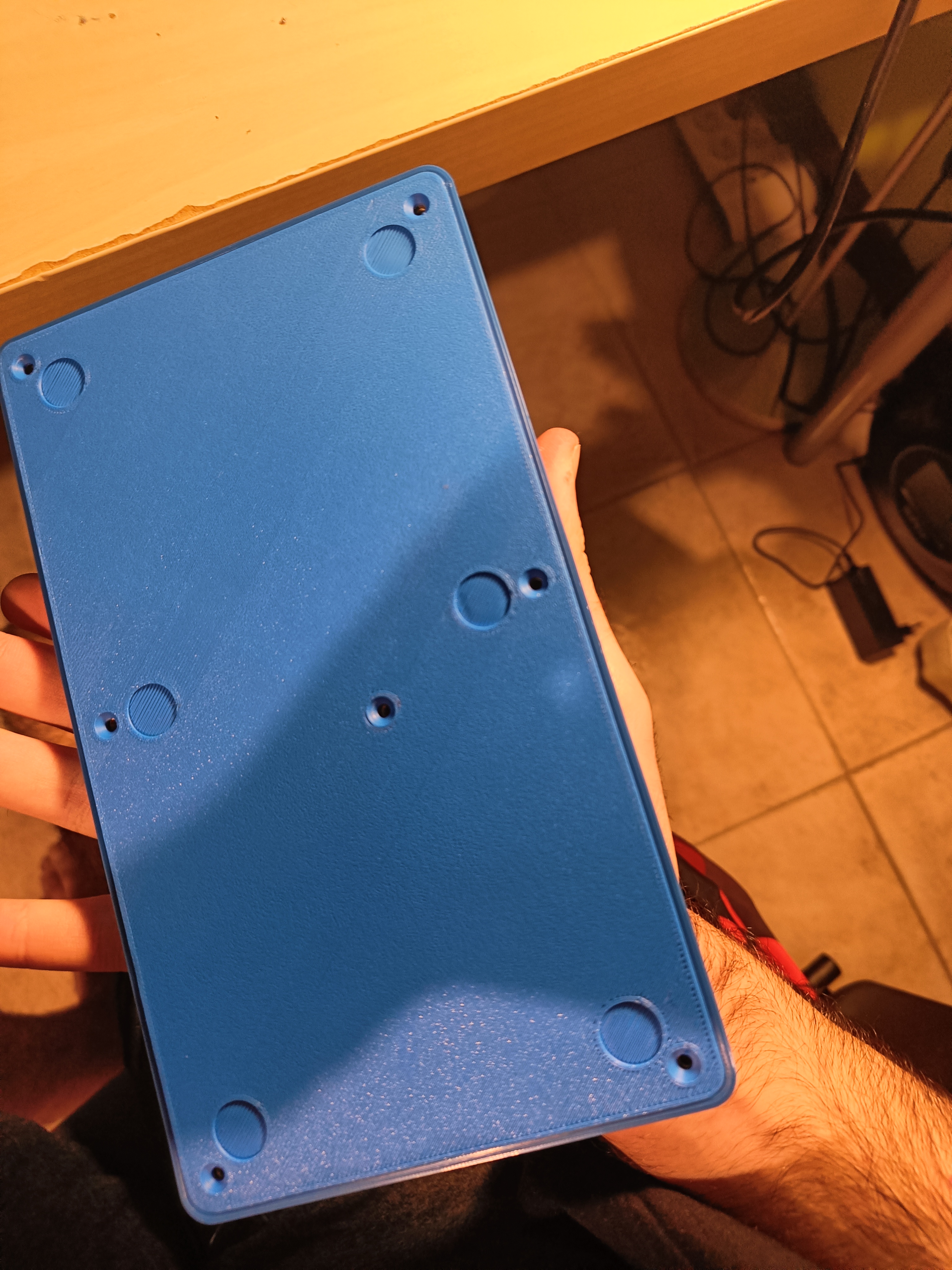

Back

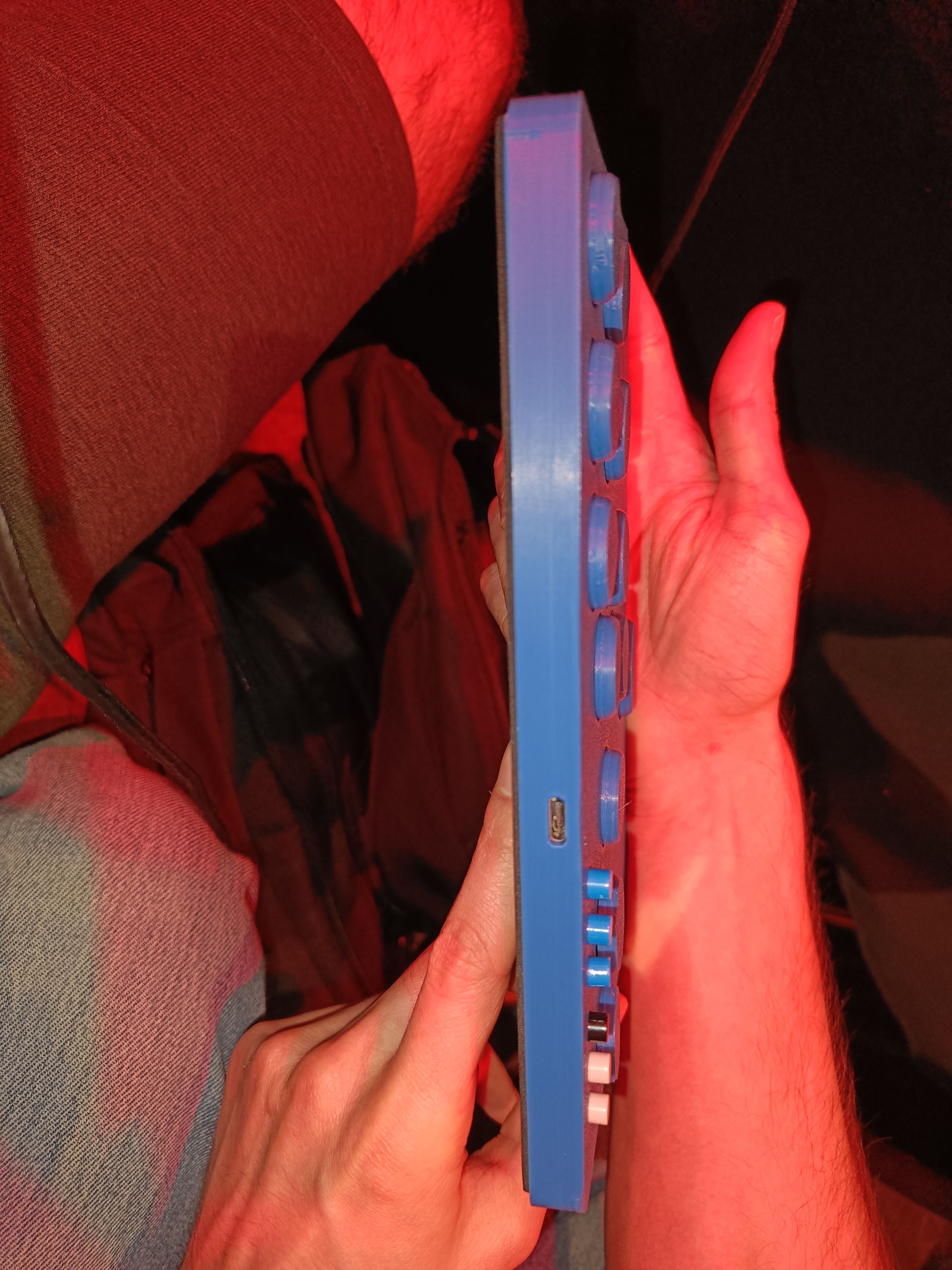

Added some padding (1mm) on the bottom of the flatbox.
Old image prior to padding.
Building (extra)

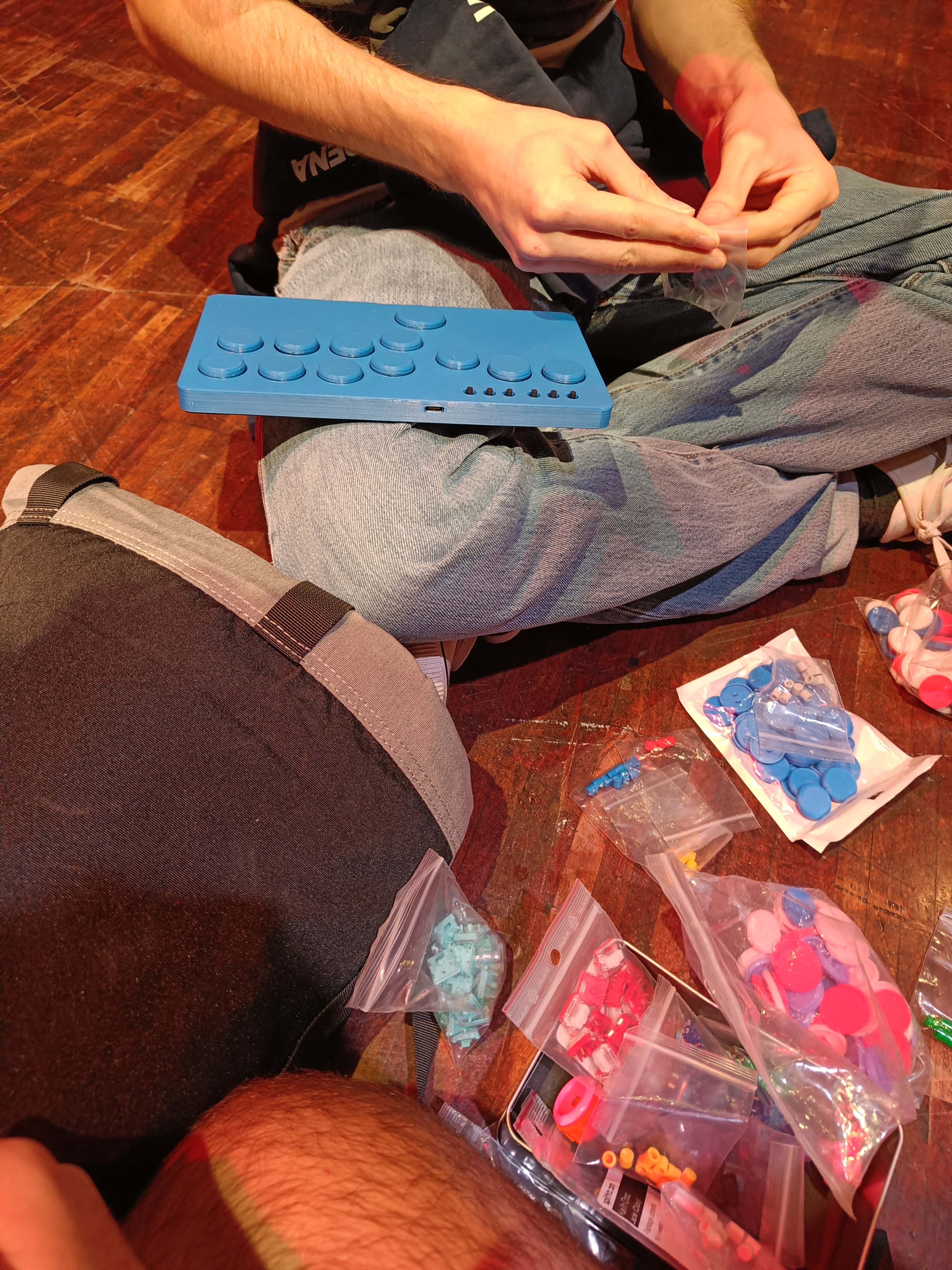

TLDR: Brought a bunch of buttons, switches, and option button hats for them to pick.
They ended up using the Sunlu PLA Matte blue for the button caps.
The body/shell of the flatbox is made of Sunlu PLA Plus gray-blue.
Keyboard Switches
- 11 x Kailh Choc V1 Robin
- 1 x Kailh Choc V1 Jade (jump)
PCB
Flatbox rev 5
https://github.com/jfedor2/flatbox
3D Prints
Shell
pett-j/Flatbox-Remix rev 5
https://github.com/pett-j/Flatbox-Remix
Buttons
Default Flatbox rev 5
https://github.com/jfedor2/flatbox
Weight
pending to fill
Connector
USB-C
Size (cm)
Pending to fill
